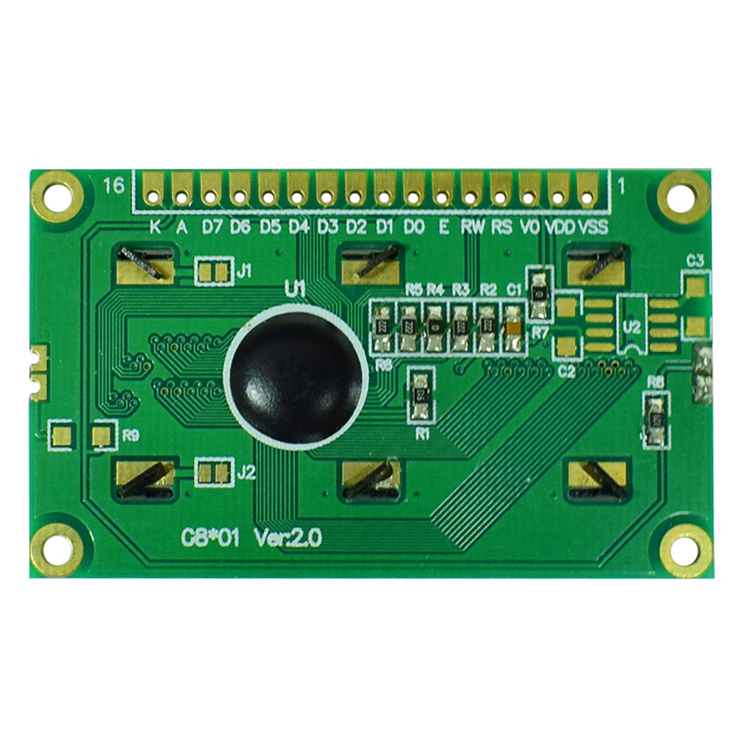

8*1 character dot matrix LCD module, 0801 LCM industrial control display screen,Appearance size: 60 (width) * 36 (high)

Item number: FLC0801-02

Key Description: 8*1 character dot matrix LCD module, 0801 LCM industrial control display screen, parallel port

Category: character type

Product label: STN character LCD module

Applications: electronic tags, handheld devices, security, industrial control equipment, medical display, communication equipment, instruments and meters

Panel type: STN-LCD

LCD module

Panel size: 1.9"

Resolution: (5 * 8) *8

Physical shape: flat rectangle

Dot size: 0.83 (width) * 0.93 (high) mm

Point spacing: 0.07 (width) * 0.07 (high) mm

Display size: 40.8 (width) * 7.93 (high) mm (A.A)

Visual size: 47.71 (width) * 12 (high) mm (V.A)

Appearance size: 60 (width) * 36 (high) mm

Max thickness: 13 mm

Polarizer: transmissive type

Color mode: yellow green film - positive display

Best viewing angle: 6 o'clock

Display color: monochrome

Duty cycle: 1/8

Controller: AIP31066

Bonding mode: COB

Backlight type: Y/GLED

Signal type: parallel port data

Signal pin: 16Pins

Touch screen: None

Operating temperature: -10 ~ 60 degrees C

Storage temperature: -20 ~ 70 degrees C
