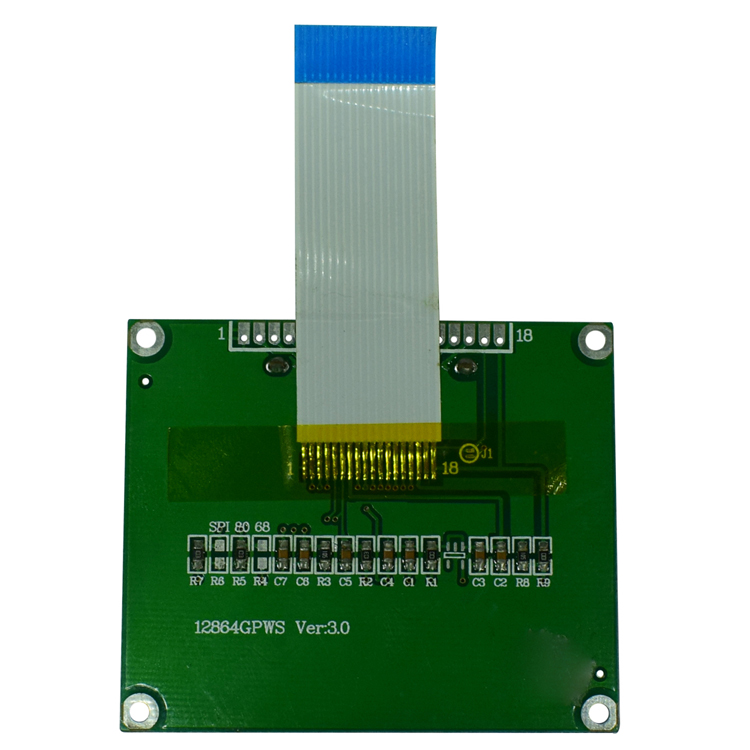

128*64 graphics dot matrix LCD module,Appearance size: 65 (width) * 54.5 (high) mm,Bonding mode: COG

Item number: FLG12864GPWS-Ver3.0

Key Description: 128*64 graphics dot matrix LCD module, 12864 LCM industrial control display screen, parallel port

Category: Graphic

Product label: STN graphic LCD module

Applications: electronic tag, hand hold equipment, security, power equipment, industry, medical display, communication equipment, instruments and meters

Panel type: STN-LCD

LCD module

Panel size: 2.5"

Resolution: 128 * 64

Physical shape: flat rectangle

Dot size: 0.36 (width) * 0.4 (high) mm

Point spacing: 0.03 (width) * 0.03 (high) mm

Display size: 49.89 (width) * 27.49 (high) mm (A.A)

Visual size: 54.6 (width) * 32 (high) mm (V.A)

Appearance size: 65 (width) * 54.5 (high) mm

Max thickness: 6 mm

Polarizer: transmissive type

Color mode: gray film positive display

Best viewing angle: 6 o'clock

Display color: monochrome

Duty cycle: 1/64

Controller: ST7567

Bonding mode: COG

Backlight type: WLED

Signal type: parallel port data

Signal pin: 18 Pins

Touch screen: None

Operating temperature: -20 ~ 70 degrees C

Storage temperature: -30 ~ 80 degrees C
