Brand Name : | FEIFAN |
Model Number : | D1602A |
Certification : | ISO9001:2008,ROHS |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, |
Supply Ability : | 60Kpcs/month |
Delivery Time : | 15-25days |
16*2 character dot matrix LCD module,Appearance size: 80 (width) * 36 (high) mm
Item number: D1602A
Key Description: 16*2 character dot matrix LCD module, 1602 LCM industrial control display screen, parallel port
Category: character type
Product label: STN character LCD module
Applications: electronic tag, handheld devices, security, industrial control equipment, medical display, communication equipment, instruments and meters, telephone
Panel type: STN-LCD
LCD module
Panel size: 2.5"
Resolution: (5 * 8) *32
Physical shape: flat rectangle

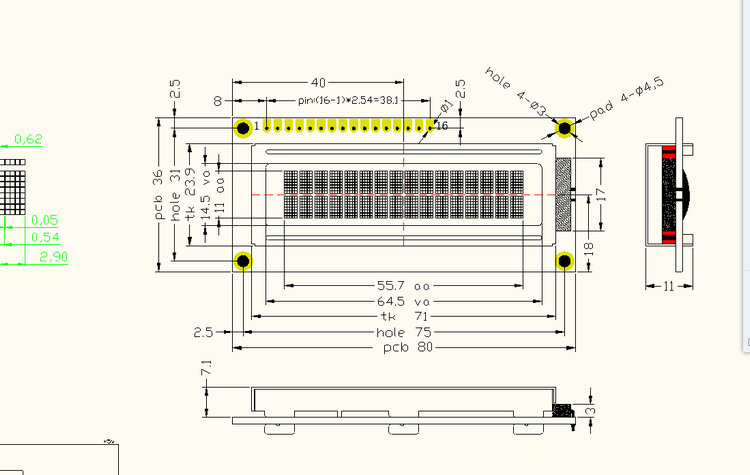

Dot size: 0.54 (width) * 0.6 (high) mm
Point spacing: 0.05 (width) * 0.05 (high) mm
Display size: 55.7 (width) * 6.11 (high) mm (A.A)
Visual size: 64.5 (width) * 14.5 (high) mm (V.A)
Appearance size: 80 (width) * 36 (high) mm
Max thickness: 11.5 mm
Polarizer: transmissive type
Color mode: yellow green film - positive display
Best viewing angle: 6 o'clock
Display color: monochrome
Duty cycle: 1/16
Controller: AIP31066
Bonding mode: COB
Backlight type: Y/GLED
![]() |
