128*128 graphics dot matrix LCD module, 128128 LCM industrial control display,Appearance size: 38 (width) * 44.5 (high)

Item number: FLG-GG128128B

Key Description: 128*128 graphics dot matrix LCD module, 128128 LCM industrial control display screen, parallel port

Category: Graphic

Product label: FSTN graphic LCD module

Applications: electronic tag, hand hold equipment, security, power equipment, industry, medical display, communication equipment, instruments and meters

Panel type: FSTN-LCD

LCD module

Panel size: 1.89"

Resolution: 128 * 128

Physical shape: flat rectangle

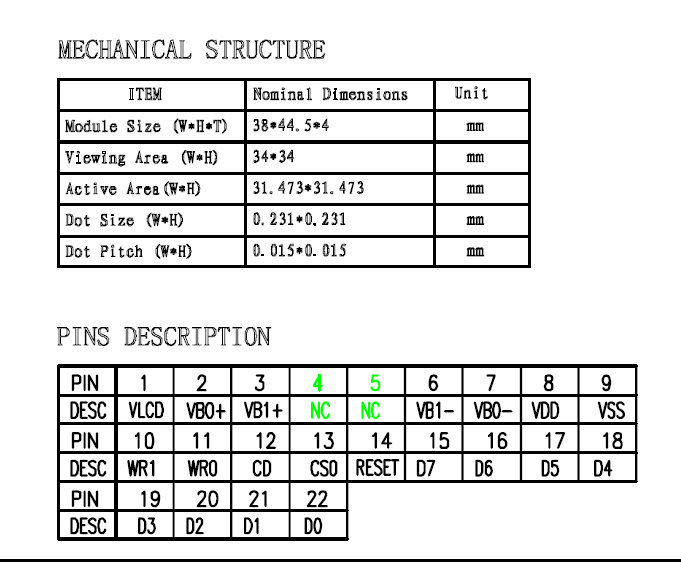

Dot size: 0.231 (width) * 0.231 (high) mm

Point spacing: 0.015 (width) * 0.015 (high) mm

Display size: 31.473 (width) * 31.473 (high) mm (A.A)

Visual size: 34 (width) * 34 (high) mm (V.A)

Appearance size: 38 (width) * 44.5 (high) mm

Max thickness: 4.2 mm

Polarizer: transmissive type

Color pattern: black film negative display

Best viewing angle: 12 o'clock

Display color: monochrome

Duty cycle: 1/128

Controller: UC1617S

Bonding mode: COG

Backlight type: GLED

Signal type: parallel port data

Signal pin: 22Pins

Touch screen: None

Operating temperature: -0 ~ 50 degrees C

Storage temperature: -20 ~ 70 degrees C
